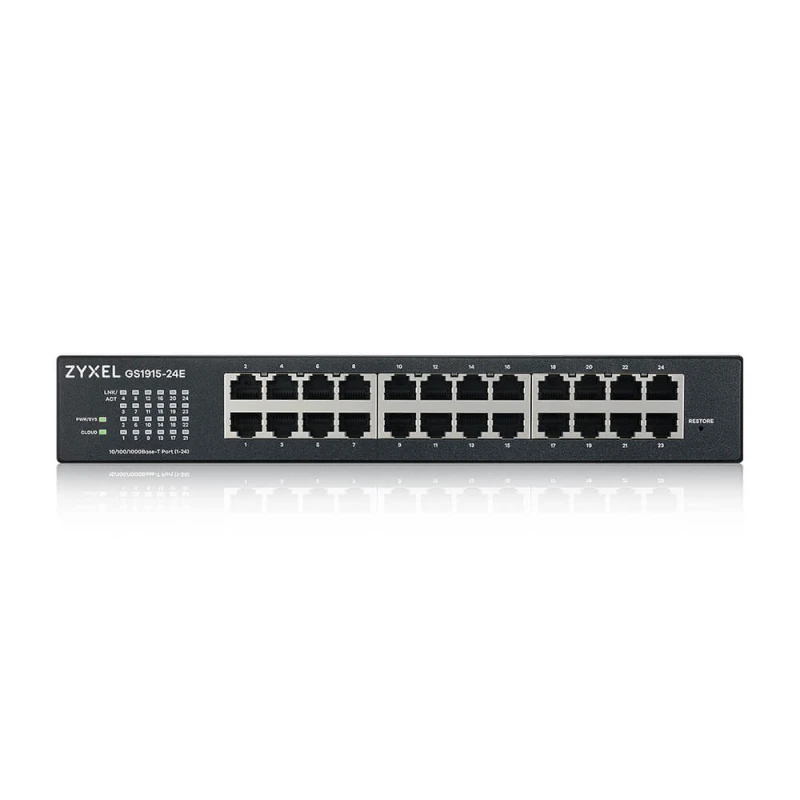

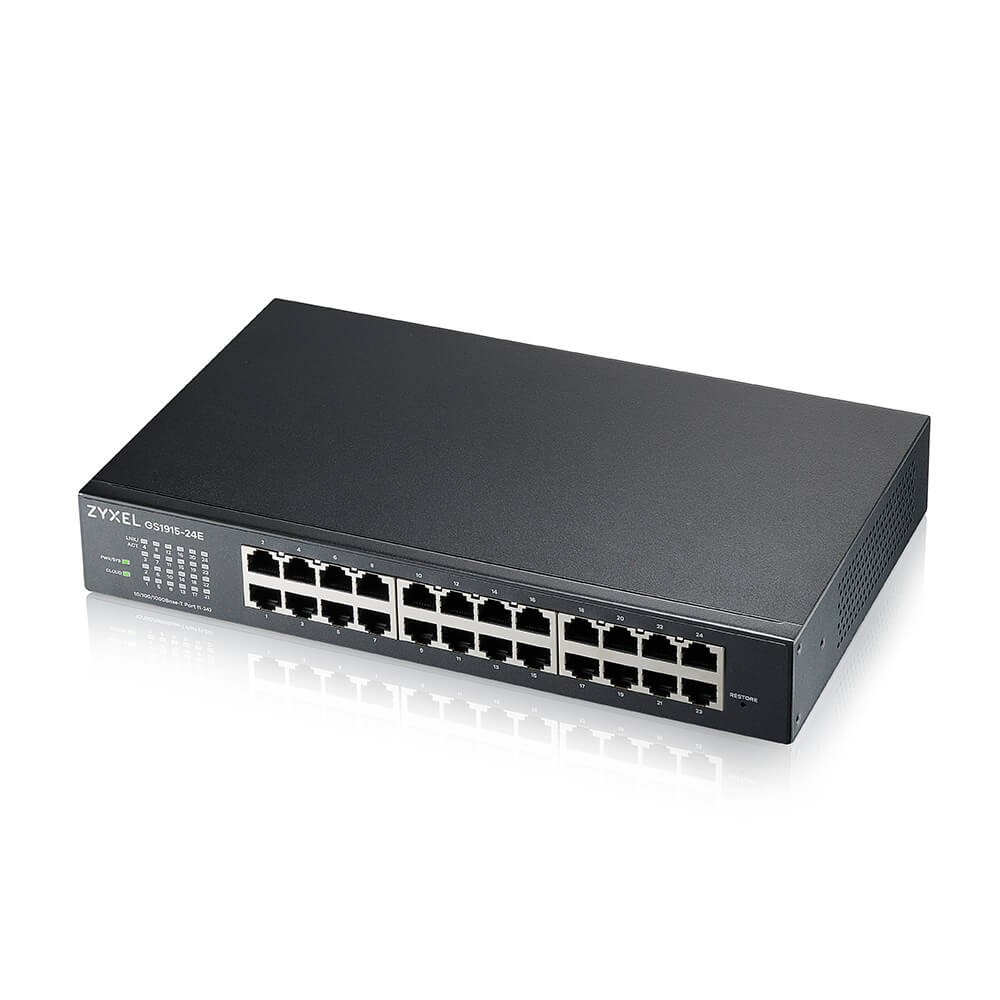

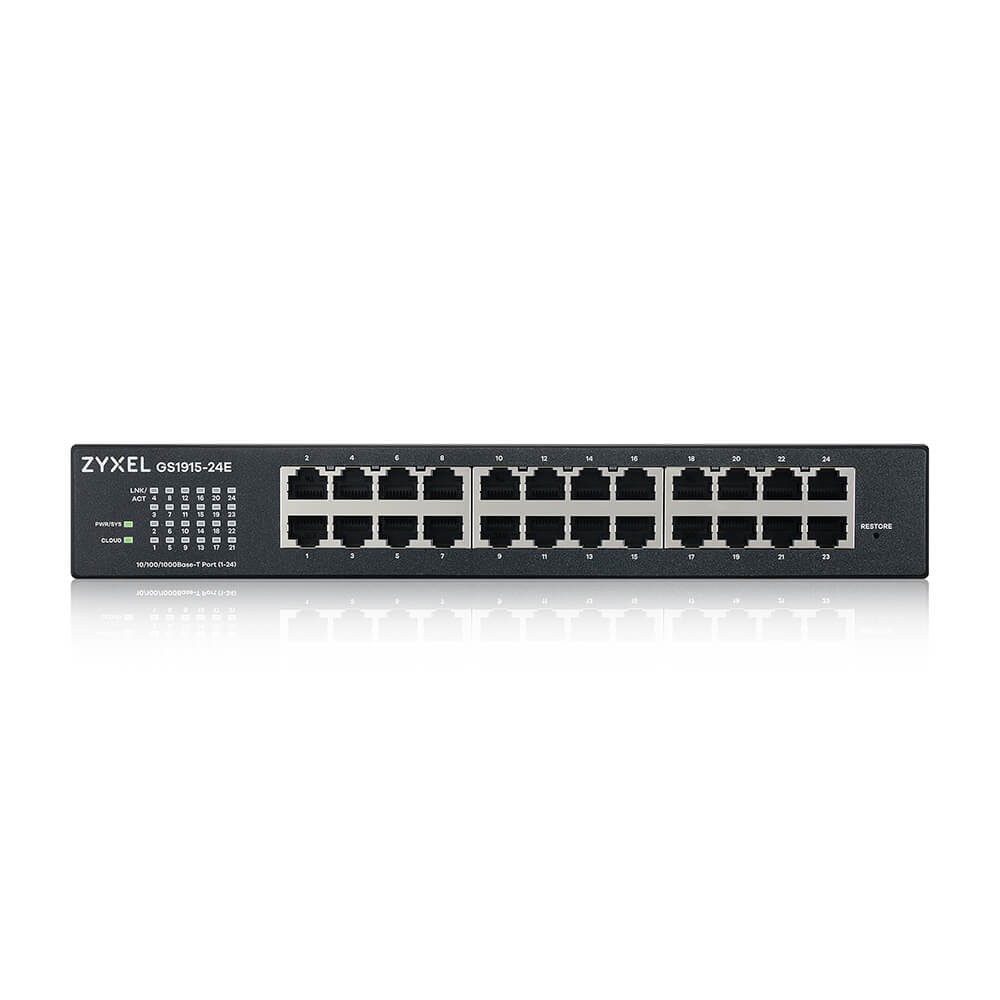

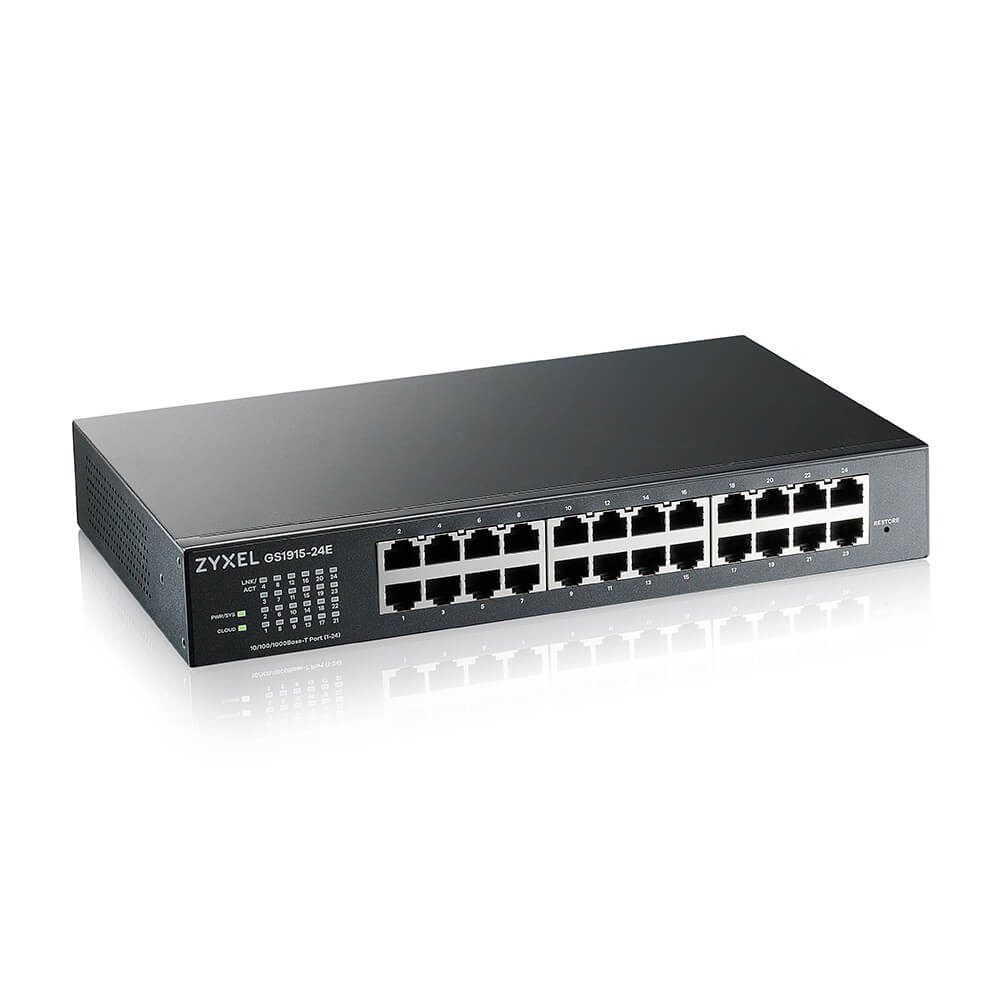

Switch ZYXEL GS1915-24E-EU0101F

• 802.1Q Static VLANs: 256
• Port-based VLAN
• Voice VLAN
• MAC-based VLAN
• Vendor ID based VLAN
• VLAN Trunking
• LACP algorithm of source/ destination IP

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3x flow control
• IEEE 802.3az EEE support/Green Ethernet
• IEEE 802.1p CoS support

• 802.1p queuing methods: SPQ, WRR, WFQ
• Storm control: broadcast, multicast, unknown unicast (DLF)
• Port-based rate limiting (ingress/egress)
• 802.3x flow control
• 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
• DiffServ (DSCP)

• Layer 2 MAC filtering
• Static MAC forwarding
• SSH v2
• SSL
• Port isolation
• Port security
• MAC freeze
• CPU protection
• SHA2 HTTPS Certification
• Login authentication by RADIUS
• RADIUS accounting
• Authorization on RADIUS
• Multiple RADIUS servers
• DHCP Snooping

IPv6 Management:

• IPv6 over Ethernet (RFC 2464)
• IPv6 addressing architecture (RFC 4291)
• Dual stack (RFC4213)
• ICMPv6 (RFC4884)
• Path MTU (RFC 1981)
• Minimum Path MTU size of 1280 (RFC 5905)
• Encapsulation for maximum PMTU size of 1500
• Neighbor Discovery (RFC4861)

Manageability:

• SNMP v1, v2c, v3
• SNMP trap group
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
• Display port utilization
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• Custom default
• Support NebulaFlex for Cloud Management

Device Management:

• Standalone management by Web interface
• Cloud management by Nebula
• Control Center
• Setup Wizard
• Management through Web, SNMP
• Remote firmware upgrade by FTP/Web
• Configuration saving and retrieving
• DHCP client
• DHCP relay per VLAN
• Daylight saving
• NTP (IPv4/IPv6)
• Port mirroring
• Schedule PoE
• PoE default consumption mode

ZON Utility:

• Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
• IP configuration
• IP renew
• Device factory reset
• Device reboot
• Device locating
• Web GUI access
• Password configuration
• One-click quick association with Zyxel AP Configurator (ZAC)
• Automatic detection of the latest firmware
• Displays device serial number and hardware version
• Cloud mode on/off option for Hybrid series devices

Smart Connect:

• Discover neighboring devices
• One-click remote management access to the neighboring Zyxel devices
• Reset neighboring devices remotely to factory defaults

• L2 Multicast
• Static L2 Multicast Forwarding
• IGMP snooping (v1, v2, v3)

• Desktop
• Rack

• Przewód zasilający
• Zestaw do montażu na ścianie
• Zestaw do montażu rack

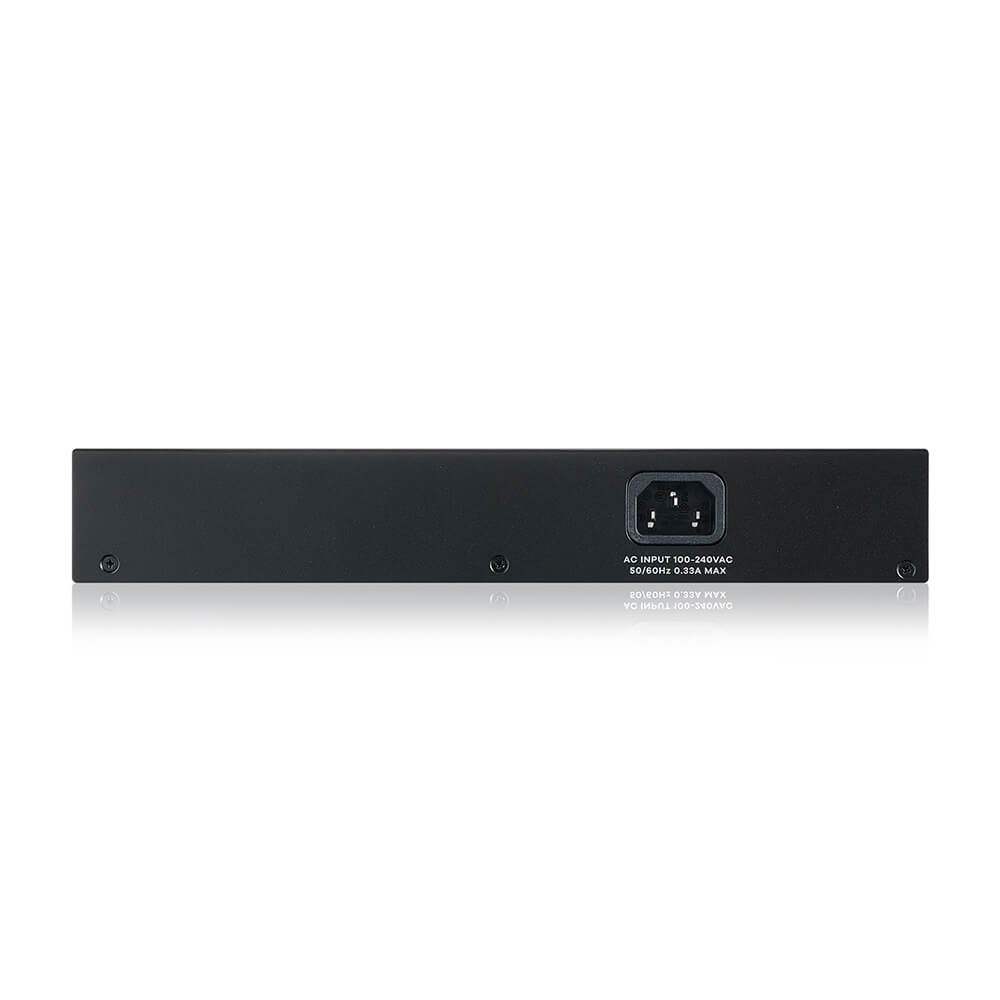

100 - 240 V AC, 50/60 Hz

267 x 162 x 42 mm

• Temperatura pracy: 0°C - 40°C
• Wilgotność podczas pracy: 10% - 95% (bez kondensacji)
• Temperatura przechowywania: -40°C - 70°C
• Wilgotność podczas przechowywania: 10% - 95% (bez kondensacji)

RoHS

EMC:

• CE, FCC, RCM, Class A
• BSMI CNS 13438

Safety:

• LVD EN 62368-1
• BSMI CNS 14336-1
